ASCHER-RACING F64 V3
The Evolution of a legend
Ascher Racing F64 USB/SC V3
When it comes to haptics, feedback, features and manufacturing, we don't make any compromises - because you don't want to make any compromises in SimRacing either.

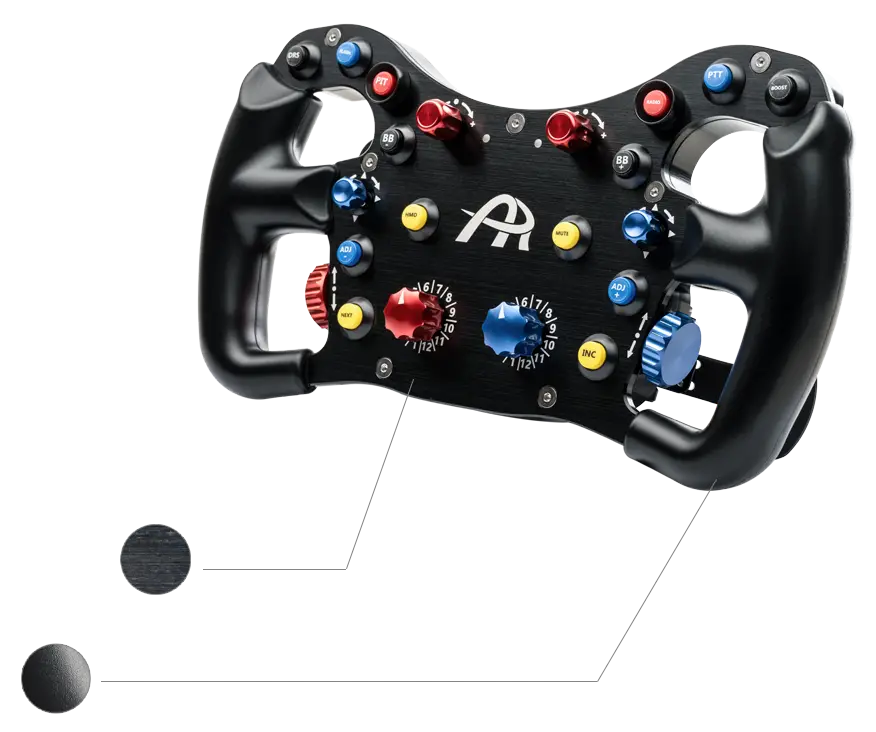

The semi-steering wheel collar of the Ascher Racing F64 V3 is shaped ergonomically and features a grippy and non-slip rubber surface. Once again, we took the current steering wheels design used in motorsports as a reference. So even if you drive without wearing gloves, the F64 V3 offers a good grip, even with sweaty hands.
We have further technically revised input options for the F64 V3. The two 7-way joysticks, the two magnetic shift paddles and the contactless clutch paddles work even more precise. In the F64 V3, we have now integrated radially mounted thumb encoders on the side, which provide excellent feedback with every move.
Our clutch paddles and magnetic shifters are machined from a high-strength aircraft aluminum alloy. In addition to SimRacers, motorsport teams use our robust Ascher Racing Clutch Paddles and Shifters. The resistance of the paddles can be adjusted using the supplied magnets. With the clutches, you can use the precise bite-point calibration to individually adjust the pressure point for perfect acceleration.
The battery in the wirless Ascher Racing F64-SC V3 has 800 hours runtime and with our USB-C cable, you can charge the battery within 6h.

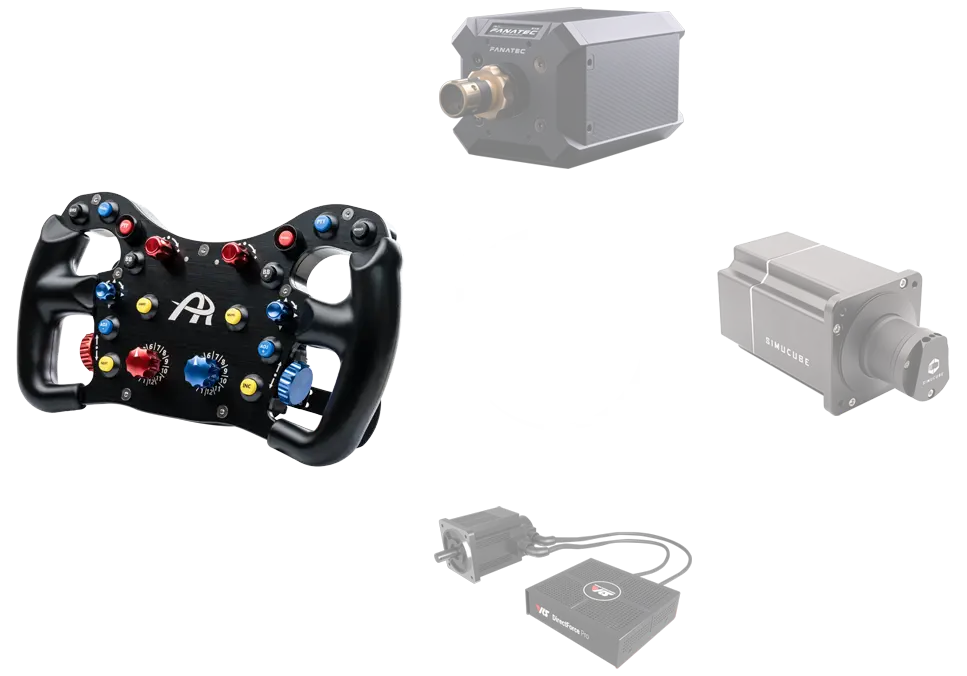

SC (WIRELESS)
- Simucube 2 Ultimate
- Simucube 2 Pro
- Simucube 2 Sport
- Any wheelbase + Simucube Link Hub
USB (UNIVERSAL)
- Fanatec
- Asetek
- Simagic
- MOZA
- VRS
- OSW
- Leo Bodnar
- Accuforce
- Logitech

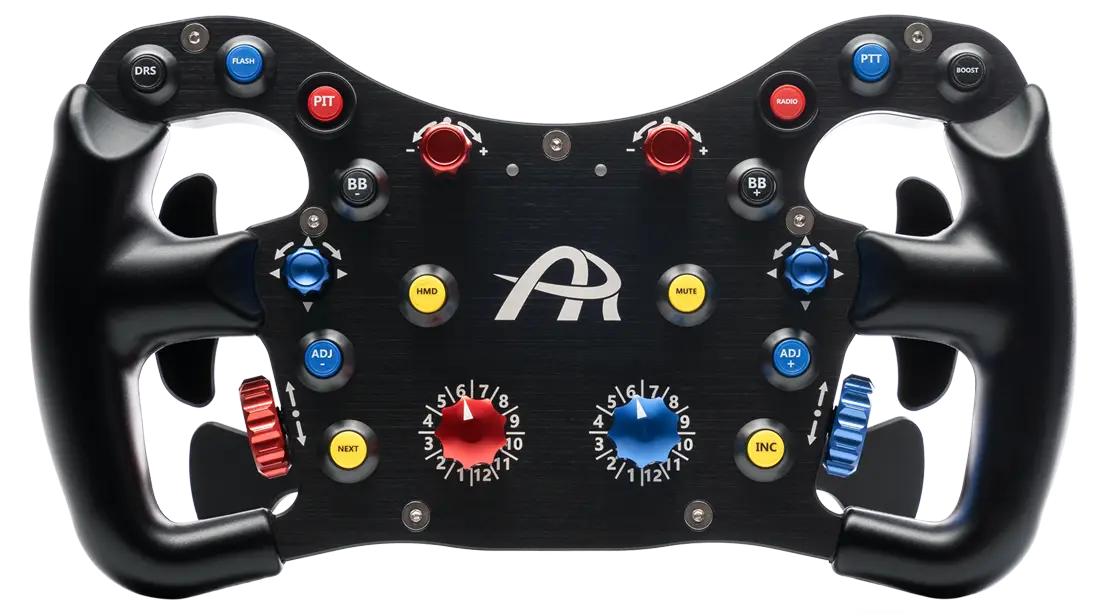

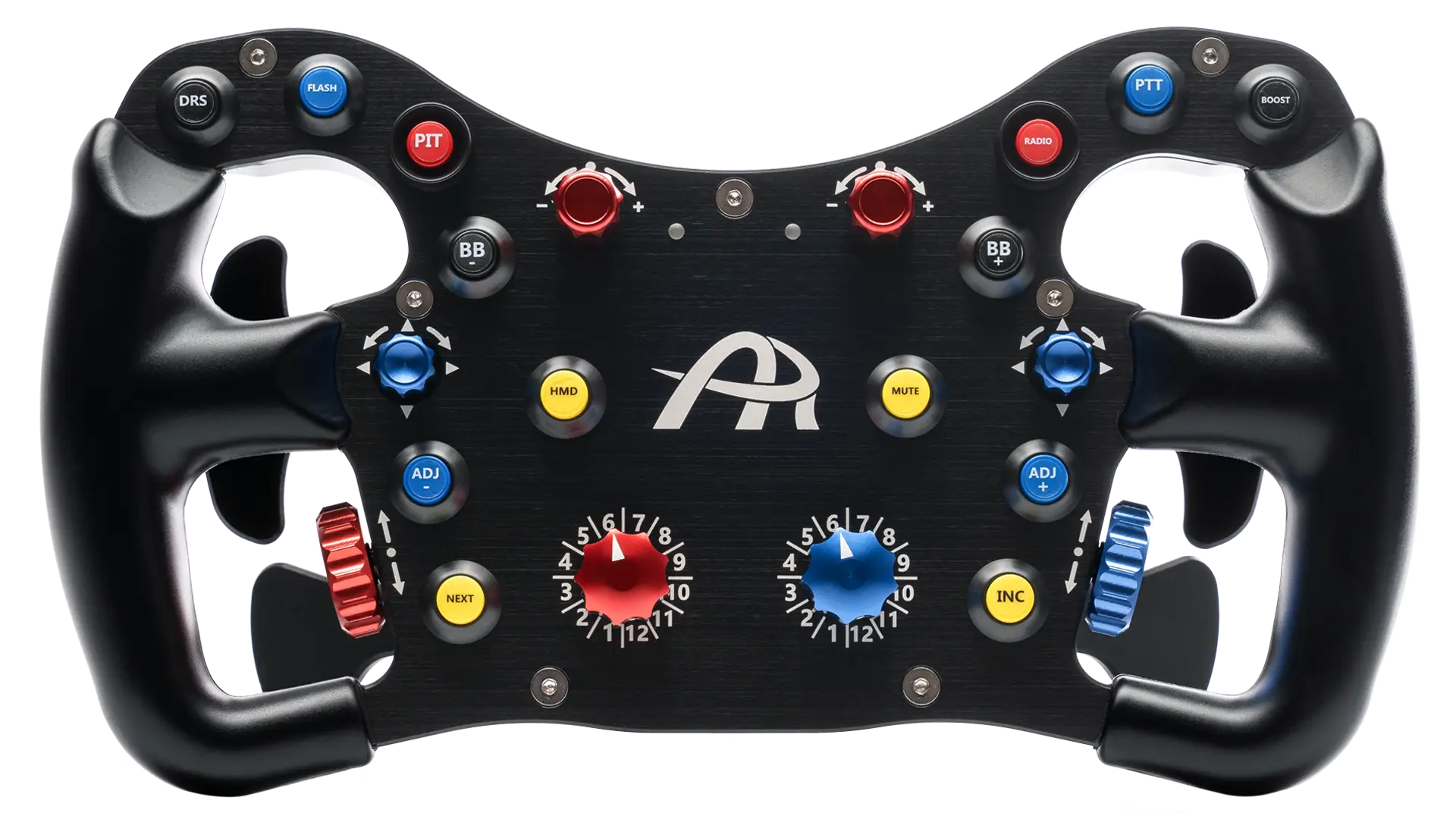

ASCHER-RACING F64 V3
- Platform independent USB connection or Simucube Wireless Wheel™
- Average battery runtime: 800h (rechargeable)
- 285mm diameter
- Maximum grip level from closed, ergonomic rubber grips
- 14 x push buttons with tactile feeling
- 2 x multifunctional 7-way joysticks
- 2 x encoders (inc. push button functionality)
- 2 x 12-position rotary switches
- 2 x thumb encoders
- Magnetic paddle shifters
- Contactless motorsport clutch paddles
MORE COMPONENTS
7 WAY JOYSTICK
Both joysticks are perfect for navigating through menus or function displays in your simulation. They also have a pressure point and you can program them for adjusting the brake balance.
14X PUSH BUTTONS
The push buttons have a tactile function that always gives you tangible feedback, with every press.
PROTECTIVE BUTTONGUARDS
To protect against operating errors, some of the buttons are equipped with button guards. This prevents you from accidentally switching to the menu or cancelling your record lap.
THUMB ENCODER
The two new side-mounted thumb encoders can be comfortably accessed with your thumbs for intuitive usage even at your fastest pace.
STICKER
Your Ascher Racing F64 V3 comes with a comprehensive range of mounting accessories, but we have also included various labelling stickers.
- Diameter: 285 mm
- Bolt pattern: 6 x 70 mm
- Durable coiled cable with industrial Binder M16 connector
- Coil cable length: approx. 64 mm
- Spacer may be needed depending on wheelbase
- Includes M5 x 12 mm stainless steel screws for QR mounting
- Quick Release not included
- For QR with M5 threads, use captive screws
- Weight: 1140 g
Additional Features – SC Version (Simucube Wireless):
- Battery & Connectivity
- Average battery life: approx. 800 hours
- Rechargeable via USB-C (charging time: approx. 6 hours)
- Encoder Modes (Upper Encoders)
- 2 modes, switchable via toggle on the back:
- Push Button Mode: standard encoder with push button function
- Shift Mode: dual encoder (rotate = Encoder 1, press & rotate = Encoder 2)
- 2 modes, switchable via toggle on the back:
- 12-Position Rotary Switch Modes
- 2 modes:
- 12-pos. Mode: each position outputs a signal
- Shift Mode: rotary switch acts as a shift selector for the thumb encoder
- 2 modes:
64+ Total Input Options:
- 14 x Push buttons with tactile feedback
- 2 x Button guards
- 2 x 7-way multifunction joysticks
- 4-way directional, rotatable clockwise & counter-clockwise, with push function
- 2 x Encoders with push-button function and aluminum knobs
- 2 x Thumb encoders
- 2 x 12-position rotary switches with aluminum knobs
- 2 x Magnetic shifters
- 2 x Clutch paddles with electronic bite point calibration
Build Quality:
- Precision CNC-machined housing from automotive-grade aluminum
- Black anodized and laser-engraved
- Brushed front surface
- Bead-blasted paddle surfaces
- Closed, ergonomic rubber grips with excellent grips, even with sweaty hands
- Show no wear
- Ideal hardness for endurance races
- Usable without gloves
Paddles:
- GGen4 Clutch Paddles
- Contactless hall sensor
- Smooth operation for precise control
- CNC-machined, anodized aluminum
- Gen5 Magnetic Single Paddle Shifters
- Strong snap force
- Alternate magnets included for reduced resistance
- Long-lasting automotive-grade switches
Button Labeling:
- 50 x black & white button stickers
- 72 x encoder stickers in various colors (blue, green, red, black, yellow, white)
- Labels for a wide range of common button functions
- Simucube 2 Ultimate
- Simucube 2 Pro
- Simucube 2 Sport
- Any wheelbase + Simucube Link Hub
- Simucube 1 (OSW, Mige)
- Fanatec
- Leo Bodnar
- OSW (Argon, etc.)
- Logitech
- MOZA
- Simagic
- VRS
- Accuforce
