ASCHER-RACING McLAREN ARTURA ULTIMATE

RGB Backlighting

• Animated, telemetry-supported lighting can be set up

Freely Configurable Button Mapping

• Freely configurable button mapping (e.g., to enable barrier-free switching to other steering wheels) & modification of all thumb encoders & rotaries possible

Non-Linear Clutch Curves Adjustable

• Non-linear clutch curves adjustable: various predefined progressive/degressive/s curves selectable or individual definition possible
• Separate setting of left and right clutch possible

Encoder Pulse Width Adjustable

• Encoder pulse width adjustable (defines how long the button is triggered per click)

Settings That Can Be Made Directly On The Steering Wheel (Without Using Software)

• Bite point calibration in 0.1% & 1.0% steps
• Selection of the analog input mode (e.g., for clutches) & quick calibration of the analog axes directly on the steering wheel

Power Supply

• USB, no power injection necessary

Power Consumption / Battery Life

• Low power consumption of only max. 500mA according to USB specification

Compatibility

• Fanatec
• Asetek
• Simagic
• OSW
• Many others

Connection

• Cabled (USB)

• 300mm diameter
• 6 x 70 mm bolt pattern
• Robust, shielded coiled cable with industrial Binder M16 connector (USB version only)
• QR spacer may be required to create sufficient clearance to the wheelbase (connector length approx. 64mm)
• Quick release not included except chosen at check-out
• Mass: 1520g

Scope of delivery:

• Ascher Racing McLaren Artura Ultimate sim racing steering wheel
• Ascher Racing McLaren sticker set
• M5 x 12 mm stainless screws to mount QR

McLAREN ESPORTS WHEEL

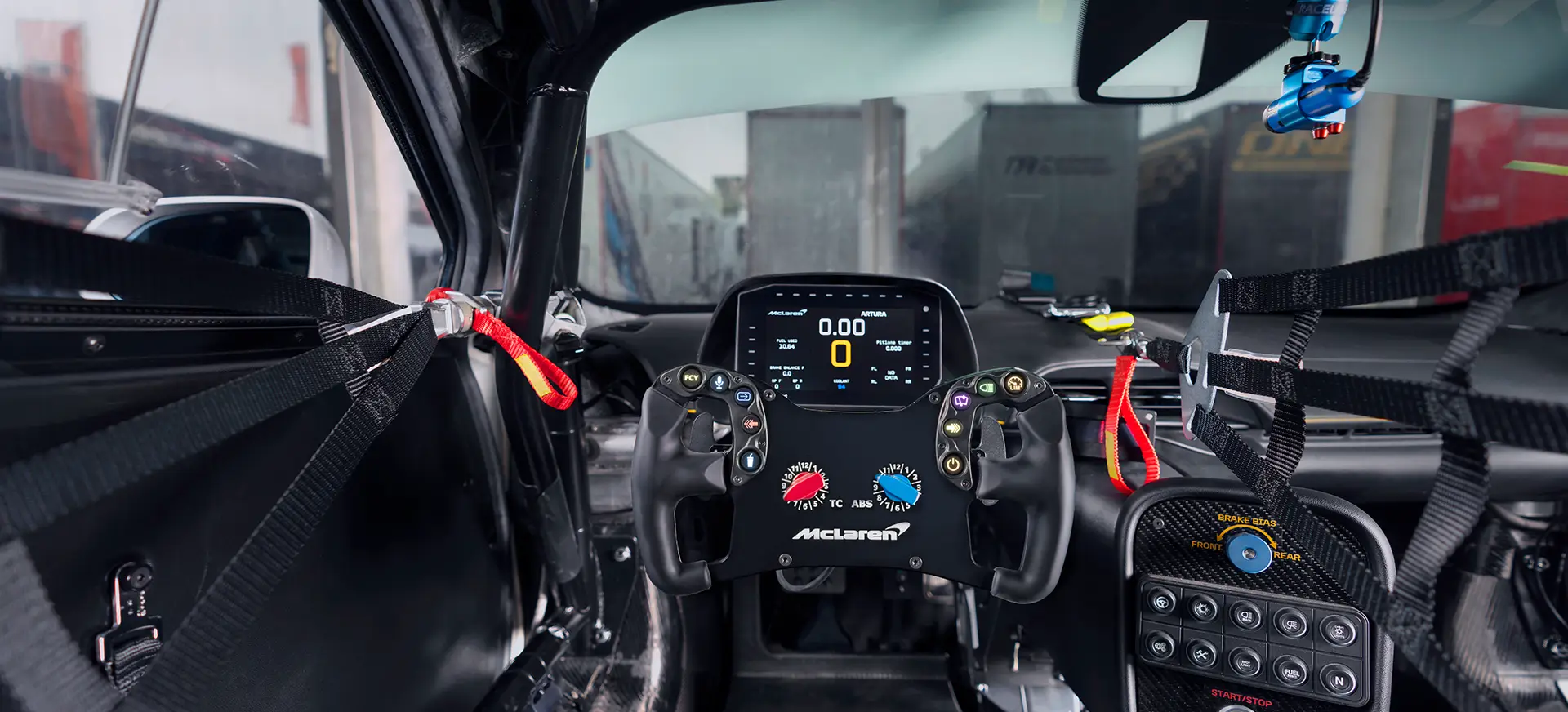

• Based on the official McLaren Artura GT4 wheel
• Uses identical components of real-racing steering wheel
• Esports optimized functionality
• Maximum grip level from ergonomically improved rubber grips and 300 mm wheel diameter used in the real race car

USB WHEEL

• Telemetry-based and animated RGB lighting
• Freely configurable button mapping (e.g., to enable barrier-free switching to other steering wheels) & modification of all thumb encoders & rotaries possible
• Non-linear clutch curves adjustable (various predefined progressive/degressive/s curves selectable or individual definition
• Encoder pulse width adjustable (defines how long the button is triggered per click)
• Selection of the analog input mode (e.g., for clutches) & quick calibration of the analog axes directly on the steering wheel without the use of software
• Low power consumption of only max. 500mA according to USB specification
• No power injection necessary
• Unrestricted operation with all PC mainboards
• Unrestricted operation with Asetek QR system

INTEGRATED 4” DASHBOARD & 21X RGB LED SHIFT LIGHTS

• 4" screen with high resolution
• 21x RGB LEDs (16 million colors)
• Official SimHub integration
• 16bit colors, 350 lm brightness
• Touch operation possible
• Seamlessly integrated

OVER 100 INPUTS

• 14 x RGB illuminated push buttons (16 Mio. colors); individually adjustable coloring and tactile feedback
• 4 x thumb encoder
• 2 x multifunctional 7-way joysticks (4 directions / rotate clock- anticlockwise/ push button)
• 2 x 12-position rotary switches
• 2 x Gen6 magnetic and silenced motorsports double paddle shifters
• 2 x motorsports clutch paddles with electronic bite-point calibration
• Retrofittable single shifter

HIGH-QUALITY FINISH

• Machined out of automotive aluminum
• Black anodized and laser engraved
• Brushed front plate surface finish
• Glass bed blasted paddle surface finish

GEN6 MAGNETIC DOUBLE PADDLE SHIFTERS

• New generation of magnetic shifters developed from scratch for motorsport applications
• Machined and anodized out of automotive aluminum
• Proven strong snap-action force
• Silenced by damped rubber stops on both ends with unlimited precision due to tight tolerances
• Free of play due to preloaded ball bearings
• Marginal hysteresis for noise-free and precise gear changes
• No switches inside –extremely durable hall sensor
• Unlimited interchange possibilities due to identical mounting points for double shifter paddles

LASER-ETCHED BUTTONS

• Laser-etched button caps with most common symbols available
• Easily interchangeable due to two-piece-design – no need to open the wheel
• Additional labels for various common steering wheel inputs

• Simucube 2 Sport
• Simucube 2 Pro
• Simucube 2 Ultimate

• Fanatec
• Asetek
• Simagic
• VRS Direct Force
• Accuforce
• U.v.m.
