ASCHER-RACING B24-SC
buy now

Slide

Pole Position²

Buy now More features and more control - with the new Ascher Racing button plates B24L-SC and B24M-SC you are straight in the race. As you would expect from Ascher Racing, you can also use our new Simucube-Wireless-Wheel-compatible button plates in original sports steering wheels.

Ascher Racing B24L SC and Ascher Racing B24M SC

Engineered to Win

The entire case of the Ascher Racing B24L SC and B24M SC are manufactured from milled aluminum, and we assemble them with high quality components. Inserted in a sports steering wheel, not only you have the impression of holding a steering wheel of an original race car in your hands.


More functionality

We have extended the functionality of the two button plates B24L SC and B24M SC with two 7-way joysticks. All in all, the new Ascher Racing button plates have 24 inputs (8x pushbuttons, 2x 7-way joysticks with pushbutton functionality as well as 2x pushbuttons enclosed with button guards). Typical Ascher Racing: You can also assign the functions of your racing simulation to all buttons, switches and knobs yourself. Of course, the shift paddles can also be configured.

Functional high-tech: the paddles

We mill the shift paddles for our Ascher Racing B24L SC and B24M SC button plates from a high-quality aluminum alloy. You can customize the shift sensitivity of the paddles with different magnets and spacers. No wonder that we also supply our Ascher Racing Paddles directly to various motorsport teams.


Direct communication. Without lags.

You don't need any cabling for the Ascher Racing B24L SC and B24M SC button plates. The lag-free data transfer is done directly between the SimuCube2 Wheel Base and our button plates. If you still drive with a SimuCube1 Wheel Base you can upgrade your old Wheel Base with an optionally available receiver. Our battery used in the button plate only needs to be replaced after two to three years.

Perfected for the Simucube 2 Wheelbase

You can mount the wireless Ascher Racing button plates B24L SC and B24M SC to your Simucube 2 Wheelbase without an adapter. If you are still using a Simucube1 or a Simucube1 compatible Wheel Base, you can connect the Ascher Racing B24L SC and B24M SC button plates via a snap-off hub or a quick-release adapter. The mounting hole circle for the Ascher Racing B24L SC and B24M SC button plates is 6 x 70 mm.


  • Simucube 2 and 1
  • OSW
  • Mige
COMPATIBLE STEERING WHEELS
B24L-SC
MOMO JET Mod 30 Mod 31 Team 30 Top Power D30
OMP Asso Kubic Superleggero Superquadro Superturismo Velocita
SPARCO L999 Lap 5 Mugello P300 R353 R375
SPORTLINE Competition Imola Mugello Racing 32P
TURN R20 (paddle spacer recommended)
OTHER Fanatec GT Fanatec Podium R300 Motamec D shape MPI GT13 Porsche 911 GT3 Cup (original & Fanatec) RMD 320 Sabelt SW-733
B24M-SC
MOMO Mod 69 Mod 78 Montecarlo
OMP 320 S Racing GP Targa Trecento
SPARCO L360 R323 R383 Ring
OTHER MPI Mazda MPI-F-13-GT

ASCHER-RACING B24-SC

Be the first to review this product
As low as €599.00
Incl. 19% VAT, excl. Shipping Cost
In stock
Art.-Nr.
B24-SC
  • Simucube Wireless Wheel™
  • Kompatibel mit vielen verschiedenen Lenkradkränzen
  • 8 x Drucktasten mit haptischem Feedback
  • 2 x multifunktionale 7-weg Joysticks
  • Magnetische Paddle Shifters
  • Aufkleber für verschiedene gängige Tastenbelegungen
Add to Wish List Add to Compare

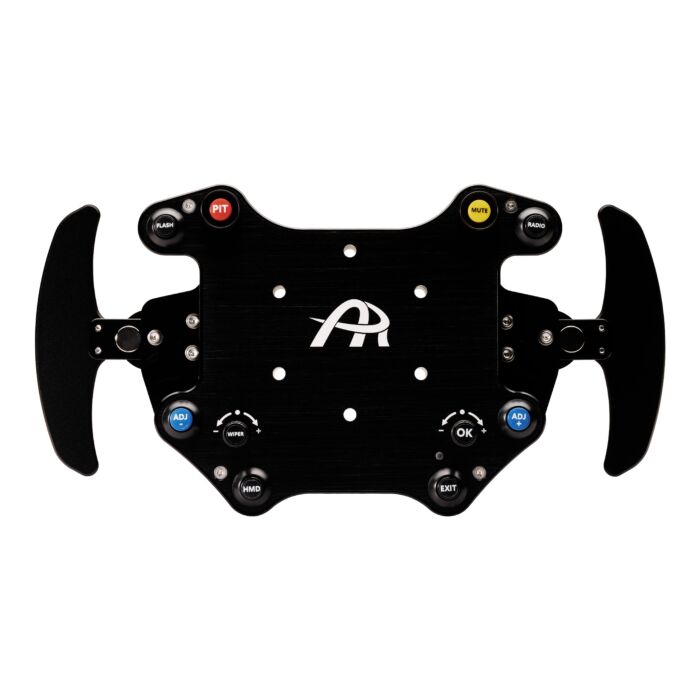

main product photo
main product photo
More components
Push Buttons

The push buttons have a tactile function, which always give you noticeable feedback with every push.

Protective Buttonguards

To protect you from operating errors in the middle of your race, some of the buttons are equipped with button guards. This prevents you from accidentally switching to the menu or breaking your record lap.

7-way Joysticks

By request of the community, we have replaced the proven rotary controls on the Ascher Racing B24L SC and B24M SC button plates with 7-way joysticks (combining up/down/left/right navigation with an increase/decrease rotary action and push-to-confirm button press) - they work extremely precisely.

Sticker

Your Ascher Racing B24L SC and B24M SC button plates come with a wide range of mounting accessories and various label stickers.

Technical Data
Simucube Wireless Wheel wireless connection to SC2 SC1 (Simucube 1): additional receiver module required! low latency low energy consumption: 2-3 years of battery life on heavy daily usage standard 14250 Lithium battery for maximum capacity easy to swap battery via back side access window button inputs via Simucube – no additional Windows controller hot swapping wheels in-game without reconfiguring inputs maximum signal quality via external stub antenna
24 Inputs 2 x multifunctional 7-way joysticks (4 directions / rotate clock- anticlockwise/ push button) 8 x push buttons with positive tactile feeling 2 x protective button guards 2 x encoders inc. push button functionality, aluminium knobs 2 x paddle shifters
Magnetic Paddle Shifters cnc machined and anodized out of automotive aluminium strong snap-action force alternative magnets to reduce force included extremely durable automotive switch
High Quality Finish machined out of automitive aluminium black anodized and laser engraved brushed frontplate surface finish glass bed blasted paddle surface finish
General Information 6 x 70 mm bolt pattern M5 x 35/40 mm screws, nuts and washers to mount Q1R included Quick Release not included mass: 700 g not suitable for heavily dished steering wheel rims
Button Labels 50 pcs button labels each black and white 72 pcs encoder labels (blue, green, red, black, yellow, white) labels for various common steering wheel inputs
Difference between M and L models mainly the compatibility of steering wheel rims M model has buttons moved upwards for rims with a horizontal shaped center L model has buttons moved downwards for rims with a curved shaped center refer to the list below for matching steering wheel rims
B24L-SC COMPATIBLE STEERING WHEELS MOMO Competition Evo JET Mod 30 Mod 31 Team 30 Top Power D30 OMP Asso Kublic Superleggero Superquadro Superturismo Velocita SPARCO L999 Lap 5 Mugello P300 R353 R375 SPORTLINE Competition Imola Racing 32P TURN R20 WEITERE Fanatec GT Fanatec Podium R300 Motamec D shape MPI GT13 Porsche 911 GT3 Cup (original & Fanatec) RMD 320 Sabelt SW-733
B24M-SC COMPATIBLE STEERING WHEELS OMP 320 S Racing GP Targa Trecento SPARCO L360 R323 R383 Ring Other MPI Mazda MPI-F-13-GT
