ASCHER-RACING MCLAREN ARTURA SPORT
TAKE YOUR RACING SKILLS TO A NEW LEVEL

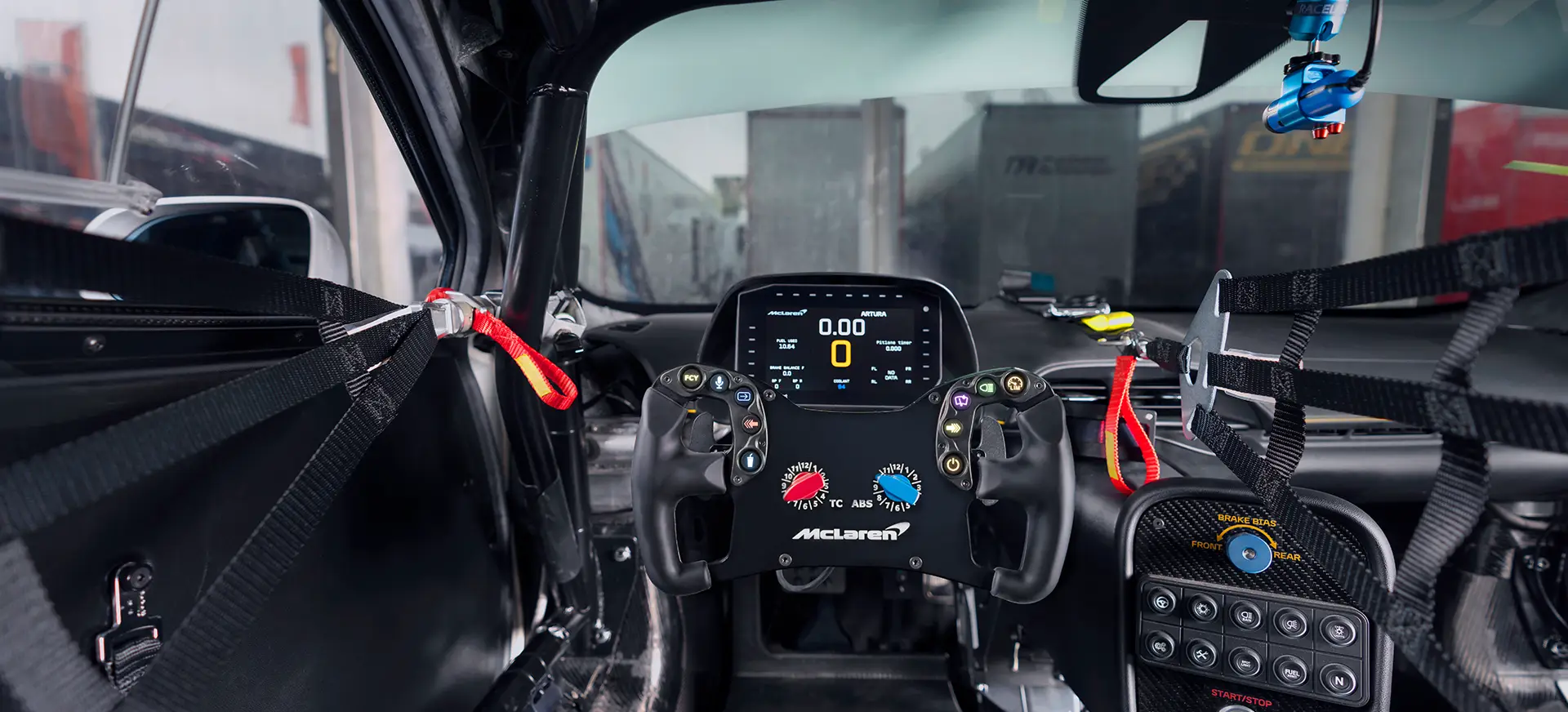

THE ULTIMATE TOOL FOR YOUR SUCCESS – CRAFTED WITH ORIGINAL McLAREN ARTURA GT4 PARTS, USING THE SAME ERGONOMICS AND 300MM DIAMETER AS THE MOTORSPORTS WHEEL.
With unprecedented realism, exceptional precision and unmatched quality, the McLaren Esports wheels are redefining what‘s possible in the world of sim racing.
RGB ILLUMINATED HIGH-QUALITY AUTOMOTIVE PUSH BUTTONS WITH INDIVIDUALLY ADJUSTABLE COLORING AND TACTILE FEEDBACK.
Get ready for the ultimate racing experience and choose from 16 million colors while enjoying maximum precision thanks to all new buttons with tactile feedback.
NO MORE STICKERS NEEDED! EASILY INTERCHANGEABLE AND LASER-ETCHED BUTTON CAPS WITH ALL COMMON SYMBOLS AVAILABLE.
Enjoy switching button caps in an uncomplicated manor thanks to our all new two-piece design and without the need of opening the whole wheel.
McLAREN APPROVED: OUR SILENCED MAGNETIC SINGLE AND DOUBLE MOTORSPORT PADDLE SHIFTERS AND CLUTCHES. ALL UPGRADEABLE.
Benefit from our new generation of magnetic paddle shifters with improved feel and silencing. Upgrade single or double paddle shifters and clutch paddles to your needs and create the ultimate wheel for your success.
AVAILABLE AS SC AND USB VERSION TO GUARANTEE ULTIMATE COMPATIBILITY.
- Fanatec
- Asetek
- Simagic
- MOZA
- VRS
- OSW
- Leo Bodnar
- Accuforce
- Logitech
ASCHER-RACING McLAREN ARTURA SPORT
- Based on the official McLaren Artura GT4 wheel and uses identical components
- Platform independent USB or Simucube Wireless Wheel™
- Magnetic and silenced single paddle shifters
- Closed design with ergonomic rubber grips for maximum safety, stiffness, and grip
- 14 x RGB illuminated high-quality automotive push buttons with individually adjustable coloring and tactile feedback
- 2 x multifunctional 7-way joysticks
- Official SimHub integration
- SC: Static lighting; brightness and color profiles can be controlled via the steering wheel
- USB: Animated, telemetry-supported lighting
- Upgradeable range of functions (double shifter, clutch paddles)
- 300 mm wheel diameter
- 6 x 70 mm hole pattern
FURTHER COMPONENTS
14X RGB PUSH BUTTONS
High-quality illuminated automotive push buttons with tactile feedback that always give you noticeable feedback, with every press. Illuminable with up to 16 million colors and fitted with easily interchangeable and laser-etched button caps.
2x 7-WAY JOYSTICKS
The two joysticks are perfect for navigating through menus or function displays in your simulation. They also have a pressure point and you can use them for brake balance.
PROTECTIVE BUTTONGUARDS
To protect you from operating errors, all buttons are equipped with button guards. This prevents you from accidentally switching to the menu or cancelling your record lap.
MAGNETIC SINGLE PADDLE SHIFTERS
Now silenced! Our magnet shifters are known for their strong snapping force and deliver incredibly direct feedback while maintaining the highest precision.
ADDITIONAL FEATURES
Your Ascher Racing McLaren Artura Pro comes with a wide range of etched button-caps, mounting accessories and various stickers.
Customizable RGB Illumination
USB:
- Colors, brightnesses, light effects and animations can be individually adjusted via SimHub
- Support of telemetry-supported light effects
- Support of individual light animations
SC:
- Colors, brightnesses, and color profiles can be changed via button shortcut directly on the wheel and individually adjusted via SimHub
Freely Configurable Button Mapping
USB:
- Freely configurable button mapping via Ascher Racing Control Center possible
- Free configuration of thumb encoders & rotaries via Control Center possible
- E.g., enables barrier-free switching to other steering wheels, or modifying of buttons and encoders, as well as behavior changes of rotaries (permanent, pulsed, encoder, etc.)
Adjustable Non-Linear Clutch Curves
USB:
- Various predefined non-linear clutch curves with progressive/degressive/s curves selectable
- Individual definition of clutch curves possible via Control Center
- Accurate dead zone adjustment possible
- Separate adjustment and setting of left and right clutch possible
Adjustable Encoder Pulse Width
USB:
- Encoder pulse width adjustable via Ascher Racing Control Center
- Defines how long inputs, e.g., buttons or rotaries are triggered per action
- Precise adjustment in milliseconds: range from 10ms to 200ms
Various Quick Settings Available Without Software Use
USB:
- Reset to factory (default) settings via button shortcut possible (also possible via Control Center)
- Clutch bite point calibration in 0.1% & 1.0% steps (also possible via Control Center)
- Selection of the analog input mode (e.g., for clutches, also possible via Control Center)
- Quick recalibration of the analog axes via button shortcut possible
SC:
- Adjustment of RGB illumination via button shortcut (mode can be accessed via switch on the back of the wheel)
- Rotary input mode can be changed via switches on the back of the wheel (12-pos, rotary, shift)
- Clutch bite point calibration in 0.1% & 1.0% steps via button shortcut
Power Supply & Consumption
USB:
- Power Supply via coiled USB cable or via internal USB-C connection
- No additional power injection necessary, due to low power consumption within USB2.0 specification
- Flawless Asetek QR integration (no visible adapter cable, within power spec, seamless switch between coiled cable and Asetek connection possible)
SC:
- Rechargeable lithium battery
- Low power consumption with at least 800h runtime with lights turned off approx. 30h with lights turned on
- Built-in “safe” mode: wheel will give warning to shut down illumination in case of low battery voltage for additional runtime (approx. 33 hours)
Compatibility
USB:
- Fanatec
- Asetek
- VRS
- Simagic
- MOZA
- OSW
- Many others
SC:
- Simucube 2 Sport
- Simucube 2 Pro
- Simucube 2 Ultimate
- Many others via SC Link
Connection
USB:
- Cabled (USB) with Binder connector
- Active USB extension included for additional cable length
SC:
- SC wireless connection
- 300mm diameter
- 6 x 70 mm bolt pattern
- Robust, shielded coiled cable with industrial Binder M16 connector (USB version only)
- Coiled cable connector length approx. 64mm (USB version only)
- Spacer may be required to create sufficient clearance to the wheelbase
- Quick release not included except chosen at check-out
- Mass: 1300g
Scope of delivery:
- Ascher Racing McLaren Artura Sport sim racing steering wheel
- Ascher Racing McLaren sticker set
- M5 x 12 mm stainless screws to mount QR
McLAREN ESPORTS WHEEL
- Based on the official McLaren Artura GT4 wheel
- Uses identical components of real-racing steering wheel
- Esports optimized functionality
- Maximum grip level from ergonomically improved rubber grips and 300 mm wheel diameter used in the real race car
SIMUCUBE WIRELESS WHEEL™
- Wireless connection to SC2
- Low latency
- Average battery runtime: 800h (rechargeable)
- Average battery runtime with backlighting: up to 30h
- Easy to charge: USB-C port on the rear (approx. 6h)
- Button inputs via Simucube – no additional Windows controller needed
- Hot swapping wheels in-game without reconfiguring inputs
- Maximum signal quality via external stub antenna
OVER 30 INPUTS
- =
- 14 x RGB illuminated push buttons (16 Mio. colors); individually adjustable coloring and tactile feedback
- 2 x multifunctional 7-way joysticks (4 directions / rotate clock- anticlockwise/ push button)
- 2 x 12-position rotary switches
- 2 x Gen6 magnetic and silenced motorsports single shifters
- Upgradeable range of functions (double shifter, clutch paddles)
HIGH-QUALITY FINISH
- Machined out of automotive aluminum
- Black anodized and laser engraved
- Brushed front plate surface finish
- Glass bed blasted paddle surface finish
GEN6 MAGNETIC DOUBLE PADDLE SHIFTERS
- New generation of magnetic shifters developed from scratch for motorsport applications
- Machined and anodized out of automotive aluminum
- Proven strong snap-action force
- Silenced by damped rubber stops on both ends with unlimited precision due to tight tolerances
- Free of play due to preloaded ball bearings
- Marginal hysteresis for noise-free and precise gear changes
- No switches inside –extremely durable hall sensor
- Unlimited interchange possibilities due to identical mounting points for double shifter paddles
LASER-ETCHED BUTTONS
- Laser-etched button caps with most common symbols available
- Easily interchangeable due to two-piece-design – no need to open the wheel
- Additional labels for various common steering wheel inputs
- Simucube 2 Sport
- Simucube 2 Pro
- Simucube 2 Ultimate
- Fanatec
- Asetek
- Simagic
- VRS Direct Force
- Accuforce
- MOZA
- OSW
- Leo Bodnar
- Logitech
