ASCHER-RACING McLAREN ARTURA SPORT

RGB Backlighting

• USB: Animated, telemetry-supported lighting can be set up
• SC: Static lighting, brightness and color profiles can be controlled via steering wheel

Freely Configurable Button Mapping

• USB: Freely configurable button mapping (e.g., to enable barrier-free switching to other steering wheels) & modification of all thumb encoders & rotaries possible
• SC: -

Encoder Pulse Width Adjustable

• USB: Encoder pulse width adjustable (defines how long the button is triggered per click)
• SC: -

Power Supply

• USB: USB, no power injection necessary
• SC: Rechargeable 1200mAh lithium battery

Power Consumption / Battery Life

• USB: Low power consumption of only max. 500mA according to USB specification, no need for external power supply with Asetek QR
• SC: Up to 30h (lights on) & up to 800h (lights off)

Compatibility

• USB: Fanatec, Asetek, Simagic, OSW, Many others
• SC: SC2 Sport, SC2 Pro, SC2 Ultimate

Connection

• USB: Cabled (USB)
• SC: Wireless (SC)

• 300mm diameter
• 6 x 70 mm bolt pattern
• Robust, shielded coiled cable with industrial Binder M16 connector (USB version only)
• Coiled cable connector length approx. 64mm (USB version only)
• Spacer may be required to create sufficient clearance to the wheelbase
• Quick release not included except chosen at check-out
• Mass: 1300g

Scope of delivery:

• Ascher Racing McLaren Artura Sport sim racing steering wheel
• Ascher Racing McLaren sticker set
• M5 x 12 mm stainless screws to mount QR

McLAREN ESPORTS WHEEL

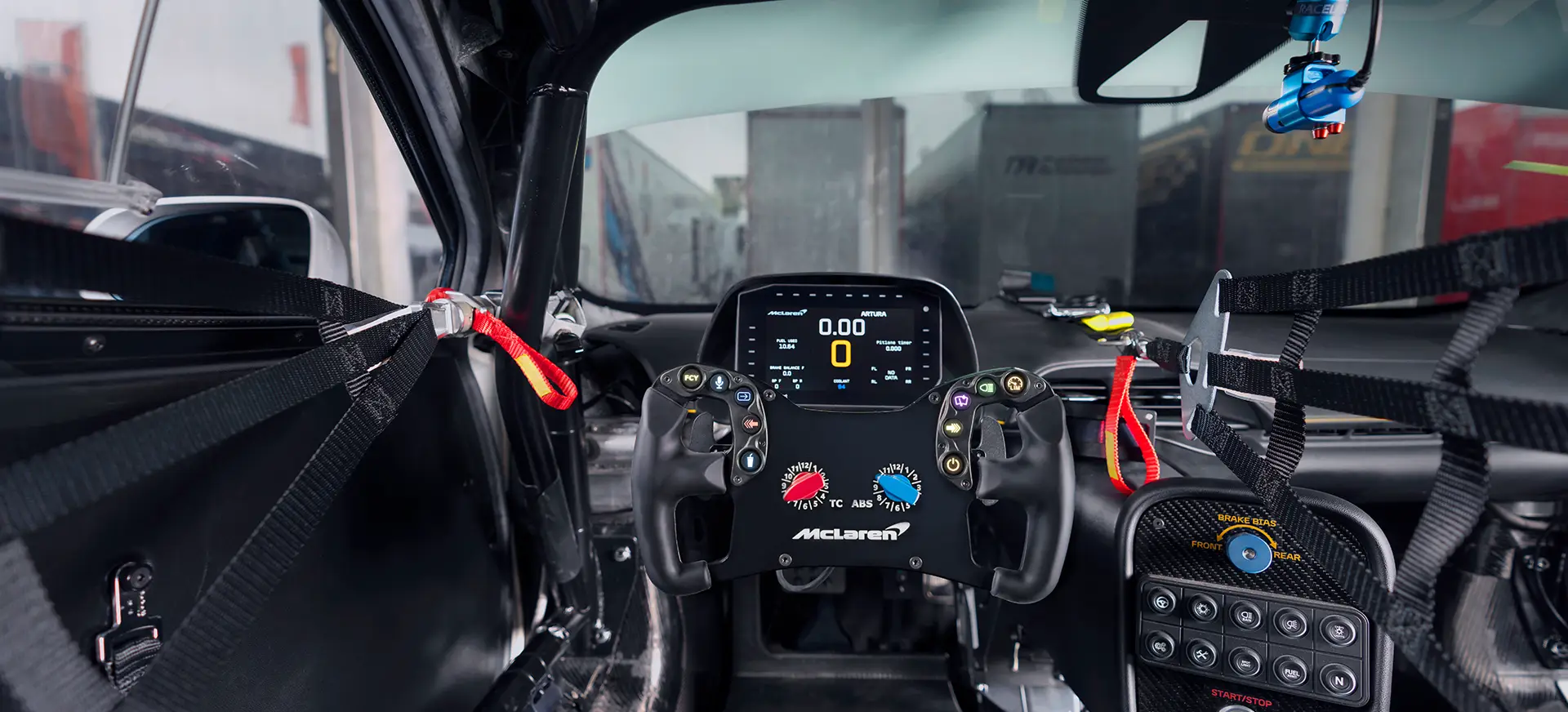

• Based on the official McLaren Artura GT4 wheel
• Uses identical components of real-racing steering wheel
• Esports optimized functionality
• Maximum grip level from ergonomically improved rubber grips and 300 mm wheel diameter used in the real race car

SIMUCUBE WIRELESS WHEEL™

• Wireless connection to SC2
• Low latency
• Average battery runtime: 800h (rechargeable)
• Average battery runtime with backlighting: up to 30h
• Easy to charge: USB-C port on the rear (approx. 6h)
• Button inputs via Simucube – no additional Windows controller needed
• Hot swapping wheels in-game without reconfiguring inputs
• Maximum signal quality via external stub antenna

OVER 30 INPUTS

• 14 x RGB illuminated push buttons (16 Mio. colors); individually adjustable coloring and tactile feedback
• 2 x multifunctional 7-way joysticks (4 directions / rotate clock- anticlockwise/ push button)
• 2 x 12-position rotary switches
• 2 x Gen6 magnetic and silenced motorsports single shifters
• Upgradeable range of functions (double shifter, clutch paddles)

HIGH-QUALITY FINISH

• Machined out of automotive aluminum
• Black anodized and laser engraved
• Brushed front plate surface finish
• Glass bed blasted paddle surface finish

GEN6 MAGNETIC DOUBLE PADDLE SHIFTERS

• New generation of magnetic shifters developed from scratch for motorsport applications
• Machined and anodized out of automotive aluminum
• Proven strong snap-action force
• Silenced by damped rubber stops on both ends with unlimited precision due to tight tolerances
• Free of play due to preloaded ball bearings
• Marginal hysteresis for noise-free and precise gear changes
• No switches inside –extremely durable hall sensor
• Unlimited interchange possibilities due to identical mounting points for double shifter paddles

LASER-ETCHED BUTTONS

• Laser-etched button caps with most common symbols available
• Easily interchangeable due to two-piece-design – no need to open the wheel
• Additional labels for various common steering wheel inputs

• Simucube 2 Sport
• Simucube 2 Pro
• Simucube 2 Ultimate

• Fanatec
• Asetek
• Simagic
• VRS Direct Force
• Accuforce
• U.v.m.
